Ionic Breathing Technology

The Ionic Breathing Technology (IBT) has been developed to address the need for effective earthing in harsher environments. This innovative system introduces a dynamic element to the electrode’s functionality.

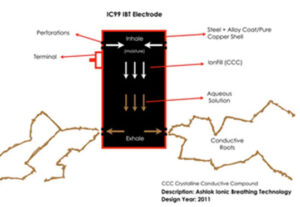

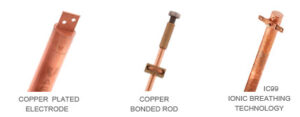

The electrode’s terminal end features perforations, which are mirrored by similar perforations at the bottom end. The cavity between the electrodes is filled with IonFill, a material containing hygroscopic elements. These elements capture moisture from the surrounding environment, ‘inhaling’ it through the terminal end. This moisture mixes with the IonFill to form a concentrated aqueous solution that is electrically conductive.

Due to gravity, this solution steadily flows downward, ‘exhaling’ out through the bottom perforations. As it flows through the soil, it forms conductive roots around the electrode, increasing the effective surface area and enhancing the system’s overall performance.

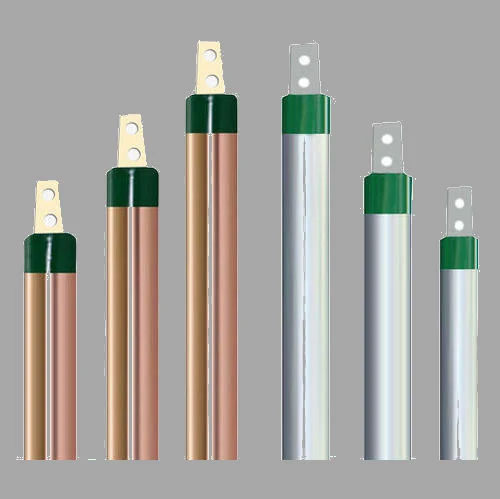

Pioneered by UMG the Pipe In Pipe design incorporates the use of two pipes of co-axial diameters joined together for enhancing the service life and performance of the over all earthing system. The cavity in-between the electrodes is filled with crystalline conductive compounds IonFill or CompactFill for current dissipation and anti corrosive properties.

The electrode cross section has to be circular for the uniform distribution of fault current all around from electrode to earth.

* Standard Tolerance = ± 10%

An Earth Enhancing Compound of  , to reduce the soil resistivity as per Clause 14.5d of IEEE 80:2000 (latest Edition) by enhancing its ionic properties, dispersion properties, hygroscopic properties, expansion properties, diffusion properties etc.

Technical Information

Standard : IEEE 80:2000 (latest Edition) Clause 14.5d

Composition :

Ionic Chemicals – create ions for easy conduction of electrical charges

Dispersion Chemicals – spread the salts equally in the earth pit

Diffusion Chemicals – diffuse into soil pores and create conductive silicate roots enlarging conductive zone of earth pit

Expansion Chemicals – expand 18 to 20 times and remove entrapped air

Hygroscopic Chemicals – absorb atmospheric and surrounding moisture and retain it in the soil

Other Patented Chemicals

Physical properties

• Presentation – Granular form
• Granulometry – 0.85mm to 4mm
• Colour : Grey
• Smell – Inodorous
• Volumetric Mass – 500 to 650Kg/m3 compressed, 450 to 500Kg/m3 uncompressed
• Solubility in water – Partially miscible
• pH value – 6.9 to 7.2 of 1000gm/lit at 200 C

Features

• Artificial treatment compound to reduce the original soil resistivity of the earth in order to dissipate the concentrated electrical charges
• Achieves resistance acceptable to any International Body
• Maintenance Free
• Low Step and Touch Potential
• Environment Friendly
• Saves Electrical and Electronic equipment from faults

An Earth enhancing compound to reduce the soil resistivity as per clause 14.5b of IEEE 80:2000 (latest Edition) by enhancing its ionic properties, dispersion properties, hygroscopic properties, expansion properties, diffusion properties etc.
